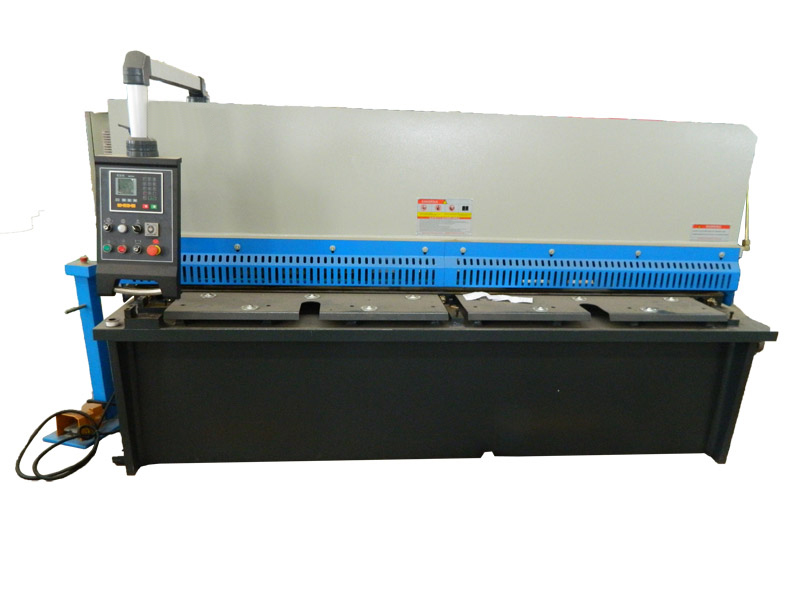

Hydraulic Shearing Machine

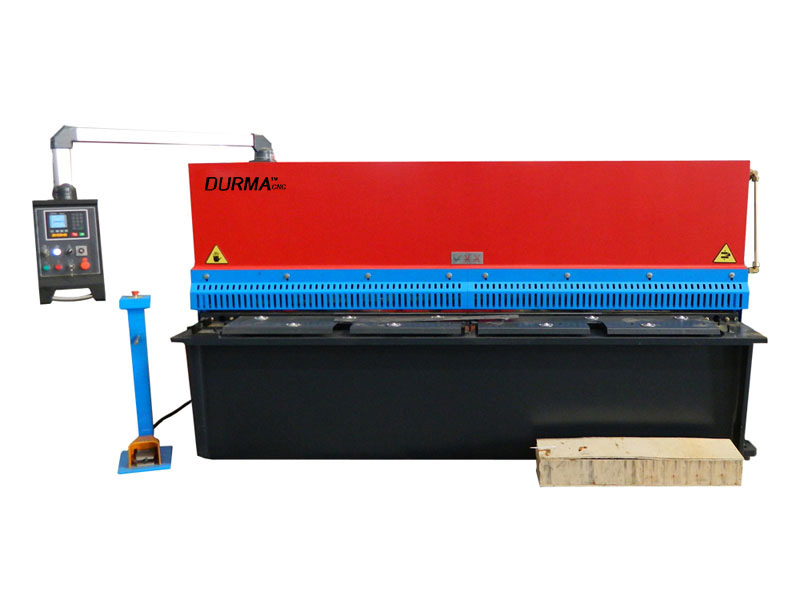

Key Parameters

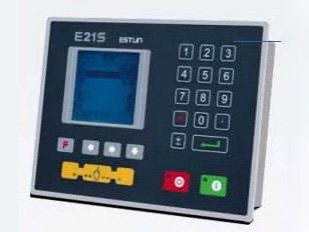

1. CNC System: E21s NC System ESTUN
2. Electrics: Schneider-France, Travel switch & Limit switch
3. Main Motor: Siemens-Germany
4. Safety Standards: CE ISO SGS
Request a Quote

Technical Specifications:

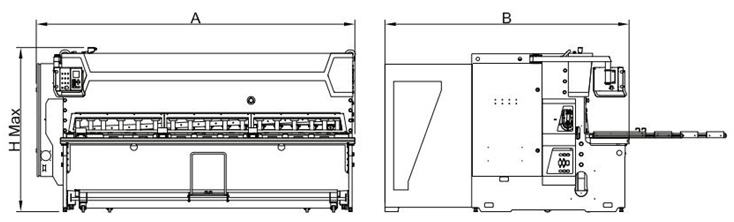

Model	Cutting Thickness (mm)	Cutting Length (mm)	Back Gauge (mm)	Cutting Angle(°)	Throat Depth (mm)	Motor Power (KW)	Net Weight (kg)	Dimension (LxWxH)(mm)
4x2000	4	2000	20-600	1.3	150	4	3200	2750x1500x1600
4x2500	4	2500	20-600	1.3	150	4	4000	3300x1500x1700
6x2500	6	2500	20-600	1.3	150	7.5	5800	3200x1650x2000
6x3200	6	3200	20-600	1.3	150	7.5	7000	3900x1650x2000
6x4000	6	4000	20-600	1.3	150	7.5	9000	4750x1800x2200
8x2500	8	2500	20-600	1.3	150	11	6000	3200x1700x2280
8x3200	8	3200	20-600	1.3	150	11	8300	3900x1750x2280
8x4000	8	4000	20-600	1.3	150	11	9500	4750x1800x2200
10x3200	10	3200	20-600	1.3	150	15	9500	3900x1850x2200
10x4000	10	4000	20-600	1.3	150	15	11000	4800x1900x2280
12x3200	12	3200	20-900	1.3	150	18.5	12000	3900x2200x2200
12x4000	12	4000	20-900	1.3	150	18.5	15800	4850x2280x2450

Technical Specifications:

Streamlined design originated from EU, machine frame using overall welding and annealing treatment.
Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission, which can effectively reduce problems caused by leakage of hydraulic fluid.
Hydraulic swing beam shearing machine is a kind of equipment swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.
Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.
Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other softer materials from being imprinted.
Made by high quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.
Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.
The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; exquisite design: petty material can be cutter easily.
Front material supporter is equipped with perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.
Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and stepless adjustment.

Main functions

High-definition LCD panel
Control motors and frequency converters
X-axis intelligent positioning
Multi-step programming, 40 programs, each program 25 steps
Built-in time relay
One-button switching function
Unilateral positioning function
One-key backup and restore parameters
Both Chinese and English language
Metric/British system

Components

2. European safety standards
  1. Safety guard
  2. Protective guards on each side can protect the user during operation
  3. Lighting(illuminating the worktable)
2. SIEMENS Motor
  1. German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.
2. E21S system
  1. Backgauge(X axis)movement control
  2. Control AC motor or Inverter
  3. Intelligent and unilateral positioning
  4. Work-piece counting function
  5. Double programmable digital output
  6. 40 programs stored, 25 steps per program
  7. One key back-up/restore of parameters
  8. Unit for mm/inch
  9. Language for Chinese/English
2. SCHNEIDER ELECTRIC Components
  1. High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
  2. Frequency Inverter
  3. The motors for backgauge stroke are controlled by Inverter, which can achieve high positioning accuracy of the backgauge.
2. Cutting blade
  1. Upper blade with 4 cutting edges, bottom blade with 4 cutting edges.
2. HIWIN Ball screw
  1. Adjust Backgauge up and down
2. REXROTH Valve
  1. World famous brand REXROTH, Sub-brand of BOSCH, which is the professional hydraulic value supplier.
  2. EMB TUBING CONNECTOR
  3. Good-looing structure and reduce the possibility of oil leakage.
